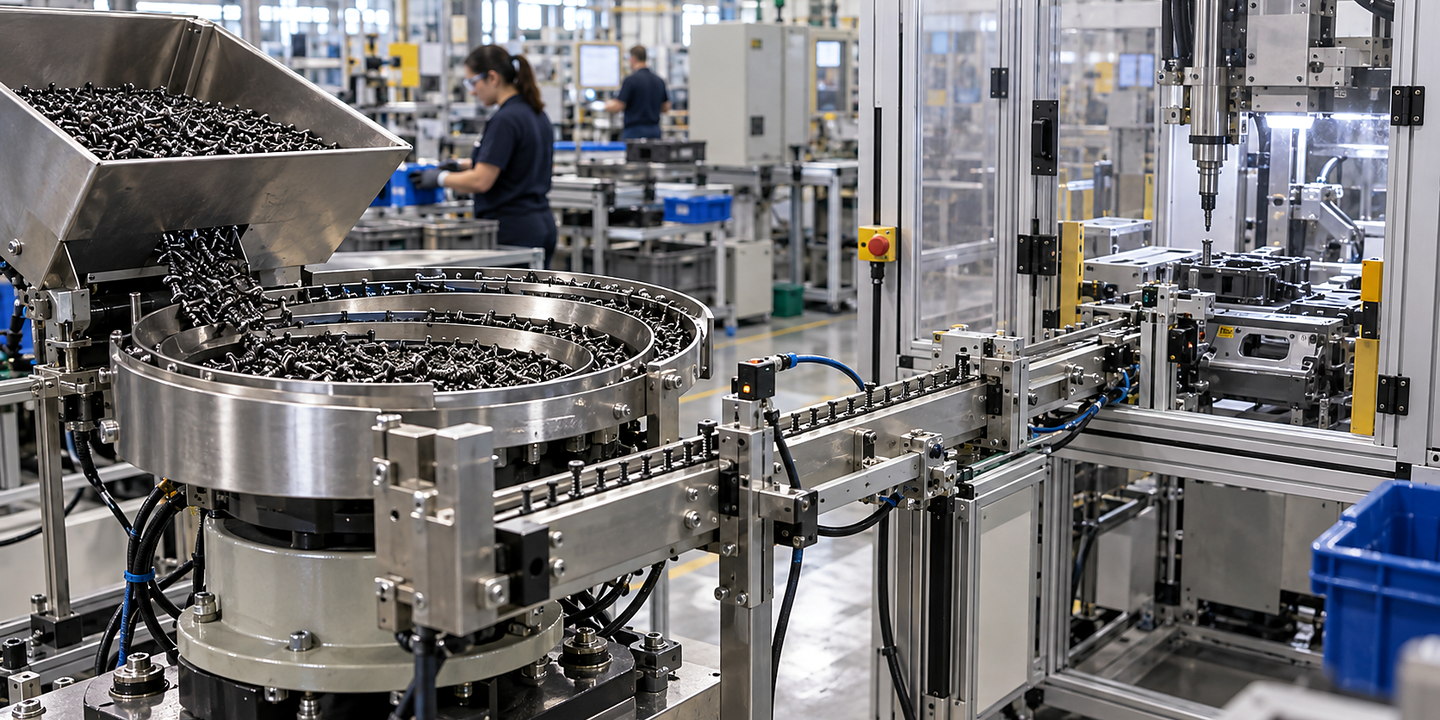

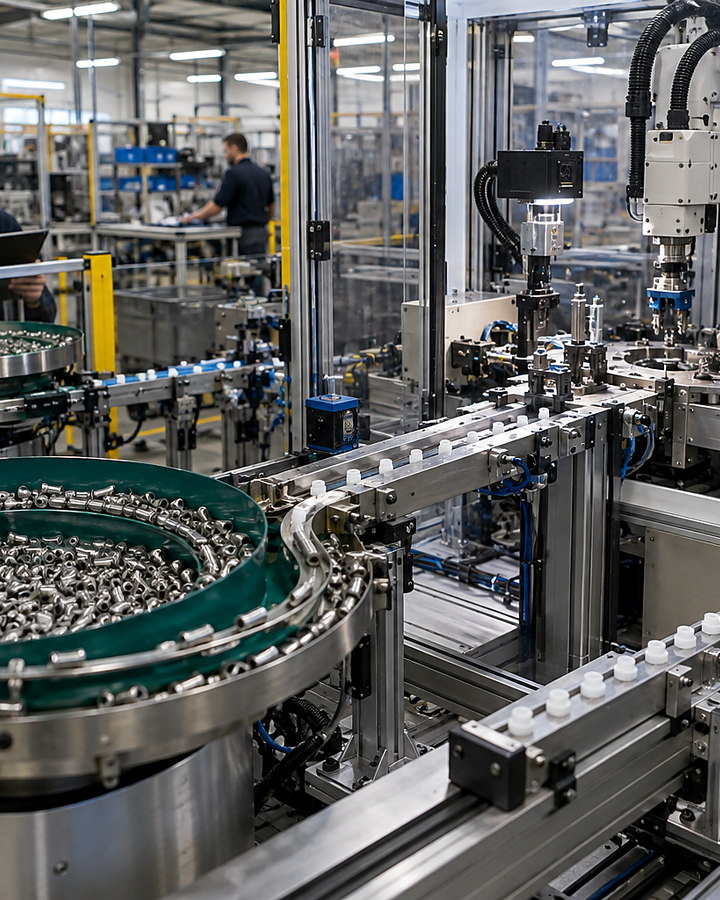

Bowl feeder with dark components and a feed track beside enclosed assembly equipment.
Component feeding and sortation

Ferrule Feeders

Plan ferrule feeders around real component variation, bulk condition, orientation, usable delivery rate and the downstream interface. Discuss representative part trials with Sorting Solutions.

Speak directly with Sorting Solutions about ferrule feeding and presentation.

Quick answer

What information is needed to specify a feeder for our ferrules?

Provide ferrules covering bore, length, flange and material variations, including their normal bulk condition. Define which end must lead and how the assembly tool receives each part. Assess singulation and final release with representative samples, including nested ferrules, damaged edges and recovery after interrupted demand.

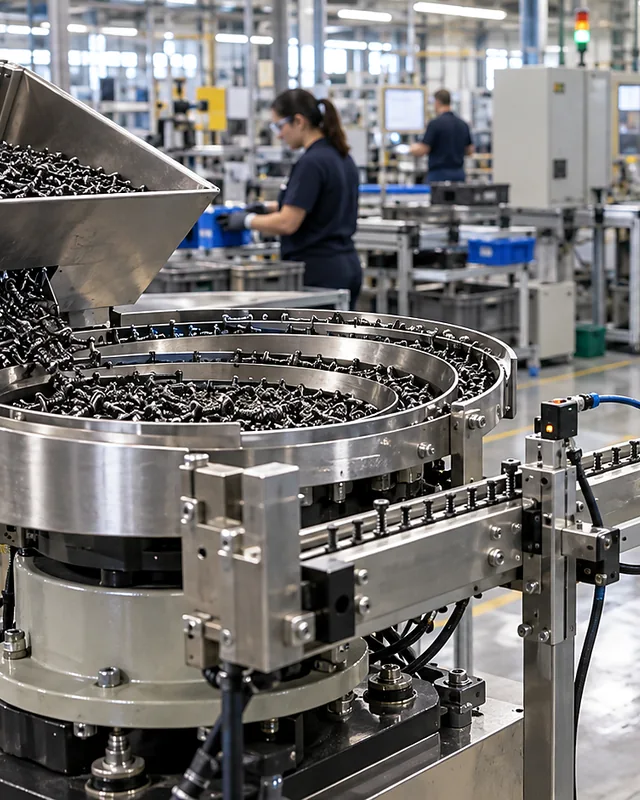

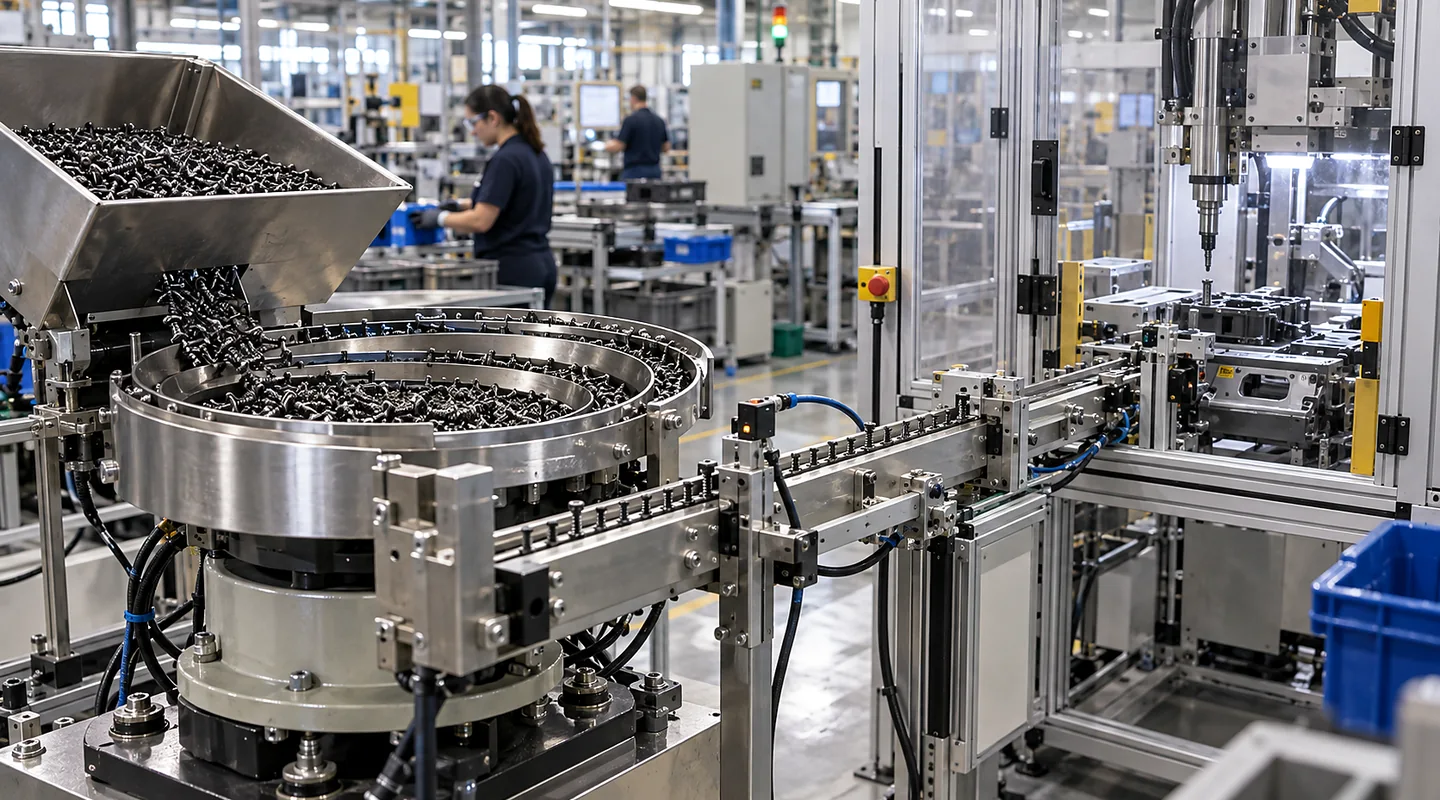

Bowl feeder with dark components and a feed track beside enclosed assembly equipment.

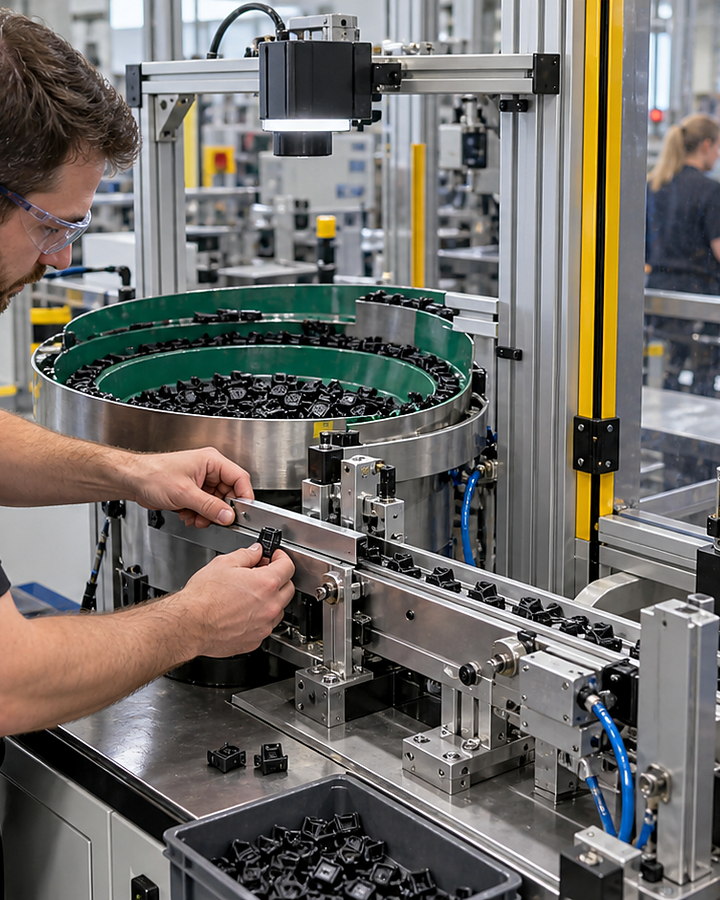

Person holding a small component beside a bowl feeder and feed track.
Application decisions

Specify ferrule feeding from the bore to the assembly hand-off

Ferrules with similar outside dimensions can behave very differently in bulk. The bore, flange, edge condition and any insulating collar determine both separation and the final assembly presentation.

Decision 1

Declare the complete ferrule family

Provide outside diameter, bore, length, flange and collar dimensions for each variant. State whether the part is a plain sleeve, flanged ferrule or insulated assembly component. A shared nominal diameter does not establish that one tooling set handles all variants. Identify permitted material and supplier changes before the trial programme is agreed.

Decision 2

Challenge nested and doubled parts

Hollow parts may telescope into one another, and collars can lodge against neighbouring pieces. Use the actual bulk packaging and loading quantity to assess these behaviours. Include known nested examples in the challenge set. The system should have an agreed method of separating, rejecting or stopping on an unresolved pair before it reaches the assembly tool.

Decision 3

Select the end that must lead

If a flange or collar determines orientation, show how it relates to the insertion datum. If the ferrule is nominally symmetrical, confirm whether either end really is acceptable after considering chamfers or formed edges. Decide which features can support mechanical selection and which require another check. Avoid adding unnecessary orientation work when both directions are functionally equivalent.

Decision 4

Protect bores and thin edges

State any restrictions on contact with the bore, coating or formed rim. A feeder can deliver the correct pose while leaving an edge unsuitable for the following operation. Inspect incoming and handled parts using the same agreed method. Review track transitions and the final stop where a thin sleeve may be pinched, tilted or marked.

Decision 5

Match the receiving tool and release

Provide a drawing of the nest, mandrel, insertion tool or pick point. Agree part support, available clearance and the confirmation needed before release. Trial the transition with the actual downstream cycle, including a request that arrives late or is withdrawn. The useful result is a ferrule ready for assembly, not merely one leaving a track.

Decision 6

Compare recovery across the size range

Test the smallest and largest ferrules, normal refill and restart after the buffer fills. Record double feeds, orientation failures, damage and interventions individually. For changeovers, identify adjustments and parts that must be exchanged, then confirm the first released ferrule. Use those results to define the permitted family instead of extrapolating from the easiest sample.

Use the specification checklist to record these decisions, then send your application details for review.

Applications

Two useful starting points for ferrule feeders

The right choice changes with component geometry and variation for ferrule feeding & presentation, surface, fragility and entanglement behaviour, your line layout and required results.

What happens next

Your route from an initial enquiry to a working solution

You can review decisions about escapement and downstream pick interface and jam, damage and recovery acceptance checks at each stage.

  1. 01

    Review Representative Production Components

    Share representative production components and the downstream interface, including the normal range for component geometry and variation for ferrule feeding & presentation and the difficult surface, fragility and entanglement behaviour cases.

  2. 02

    Trial Separation, Orientation and Presentation

    Compare suitable methods and use focused trials to show how each option performs against bulk condition and replenishment method.

  3. 03

    Develop Tooling, Controls and the Downstream Interface

    Connect the equipment to your line, services and controls while resolving required orientation and delivery rate for day-to-day operation.

  4. 04

    Challenge Delivery, Replenishment, Jams and Recovery

    Confirm escapement and downstream pick interface, then complete and record jam, damage and recovery acceptance checks before your operating team takes over.

Important limits

Know what needs a separate check

Your final solution for ferrule feeding and presentation must reflect the law, current standards and site-specific risks that apply to your installation.
